Taps & Dies

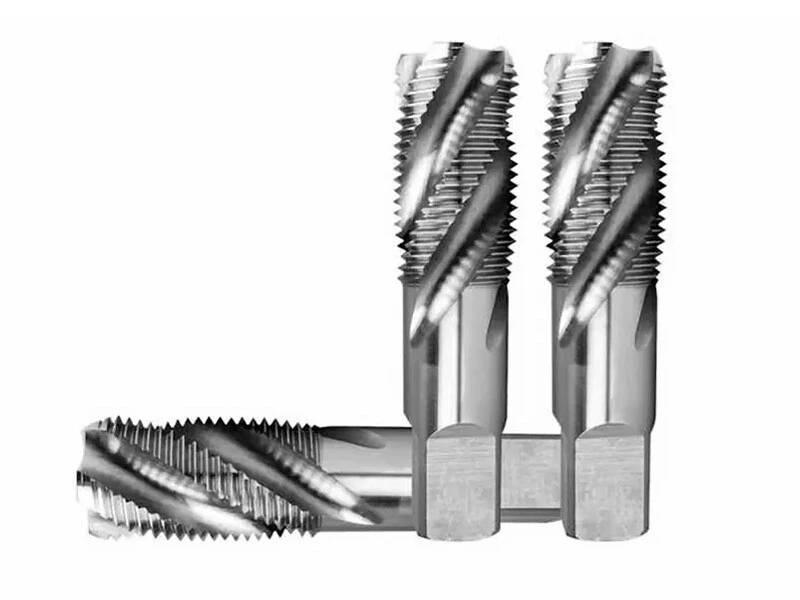

Taps and dies are metal threading tools, tap and die sets are used to cut and restore internal and external threads precisely. A tap is used to form the female component of the assembly, as in the case of a nut or socket, a die is used on the male component, as in a screw or bolt. In other words, a Tap is used to create the internal threads in a hole and a die is used to make or repair external threading on a round rod, screw, or bolt. T handle wrenches are used with a tap to create or repair an internal thread. T Handles hold the end of a tap to provide extra leverage for hand tapping.
Request A Sample
Product Description Taps & Dies

Taps and dies are metal threading tools, tap and die sets are used to cut and restore internal and external threads precisely. A tap is used to form the female component of the assembly, as in the case of a nut or socket, a die is used on the male component, as in a screw or bolt. In other words, a Tap is used to create the internal threads in a hole and a die is used to make or repair external threading on a round rod, screw, or bolt. T handle wrenches are used with a tap to create or repair an internal thread. T Handles hold the end of a tap to provide extra leverage for hand tapping.

Size of Taps & Dies
THREADSIZEDRILL DIAMETER Coarse ThreadTAP
DRILLSIZE
1-64.0595No. 53
2-56.0700No. 50
3-48.0785No. 47
4-40.0890No. 43
5-40.1015No. 38
6-32.1065No. 36
8-32.1360No. 29
10-24.1495No. 25
12-24.1770No. 16
1/4-20.2010No. 7
5/16-18.2570‘F’
3/8-16.31255/16
7/16-14.3680‘U’
1/2-13.421927/64
9/16-12.484431/64
5/8-11.531217/32
3/4-10.656221/32
7/8-9.765649/64
1″-8.87507/8
Fine Thread
0-80.04693/64
1-72.0595No. 53
2-64.0700No. 50
3-56.0820No. 45
4-48.0935No. 42
5-44.1040No. 37
6-40.1130No. 33
8-36.1360No. 29
10-32.1590No. 21
12-28.1820No. 14
1/4-28.2130No. 3
5/16-24.2720‘I’
3/8-24.3320‘Q’
7/16-20.390625/64
1/2-20.453129/64
9/16-18.515633/64
5/8-18.578137/64
3/4-16.687511/16
7/8-14.812513/16
1″-14.937559/64
