317L Stainless Steel Pipe
317L stainless steel has lower carbon content than 317 stainless steel, which means it has better corrosion resistance and higher creep strength at high temperatures. Molybdenum, nickel and chromium are the three main alloying elements of this stainless steel.
Request A Sample

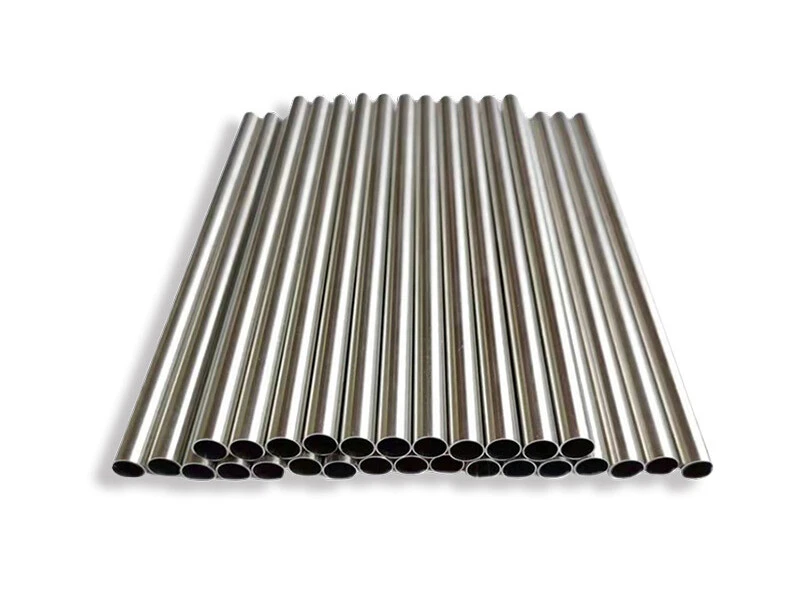

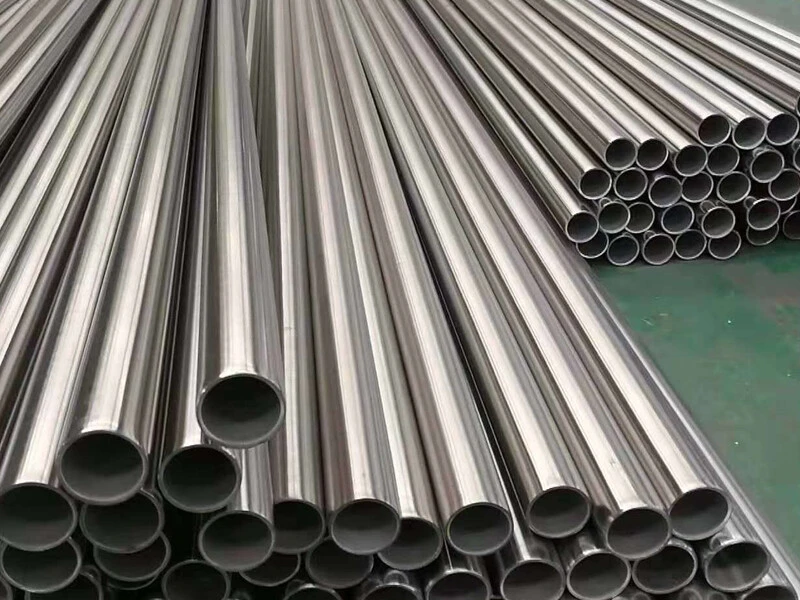

Product Description 317L Stainless Steel Pipe

317L stainless steel has unique properties and characteristics resulting from its chemical composition. It is composed of a combination of elements such as chromium, nickel, molybdenum, and carbon. Chromium is the main component of 317L stainless steel and makes it highly corrosion-resistant. It forms a protective layer on the metal surface, preventing rust and staining. Chromium also plays an important role in increasing its high-temperature strength. Molybdenum gives it better resistance to pitting corrosion from chloride solutions commonly found in harsh environments such as seawater or chemical processing plants. Carbon content improves hardness but can reduce weldability when controlled improperly. The precise balance between these elements ensures that 317L stainless steel pipe performs better than traditional austenitic grades in high-temperature, corrosive environments.


Product Parameters

Product Name

317L Stainless Steel Pipe

Type

Steel Pipe

Outer diameter

Round Tube

4mm-200mm

Square Tube

10*10mm-100*100mm

Rectangular Tube

10*20mm-50*100mm

Wall Thickness

0.6mm-6.0mm

Length

1-6 meters, Length can be customized

Standard

ASTM, AISI, JIS, GB, DIN, EN, etc.

Surface

Black, Bright Polished, Rough Turning, Matt Surface Treatment, No. 4. BA, etc.

Scope of Application

Common applications for stainless steel pipes include food processing,

Textile operations, Breweries, Water treatment plants, Oil and gas processing,

Fertilizers and pesticides, Chemical applications, Construction, Pharmaceuticals, Auto parts, etc.

Certificate

ISO, SGS, BV, CE,MTC,etc.

Production Technology

Welded, Seamless

Chemical Composition
Mechanical Properties
CSiMnCrNiSPMo
≤ 0.035≤ 0.75≤ 2.018.0~20.011.0~15.0≤ 0.03

≤ 0.04

3.0~4.0
Tensile Strength Kb (MPa)Yield Strength σ0.2 (MPa)Elongation D5 (%)Hardness
≥480≥177≥ 40≤ 187HB;≤ 90HRB;≤ 200HV
