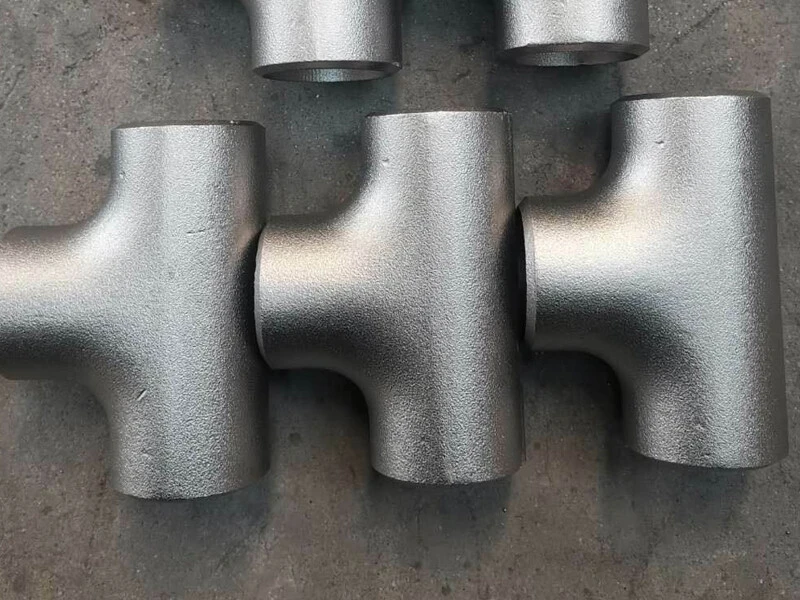

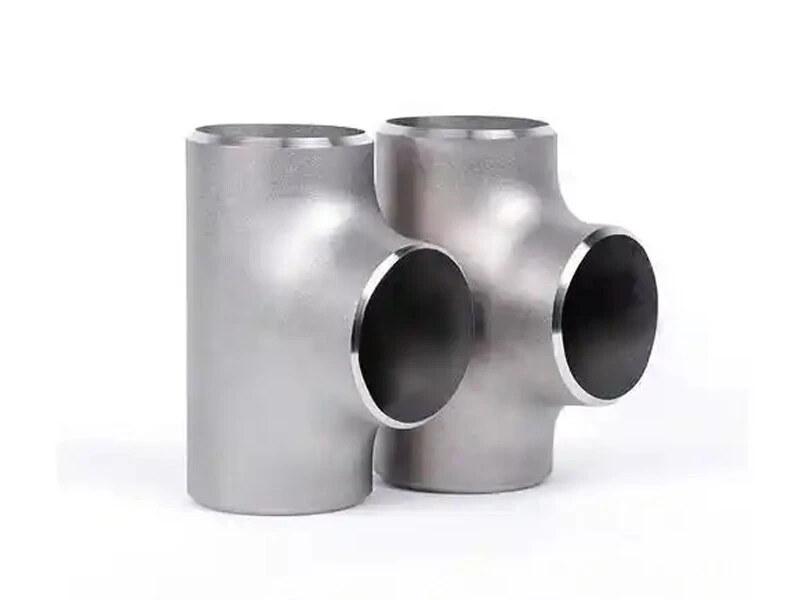

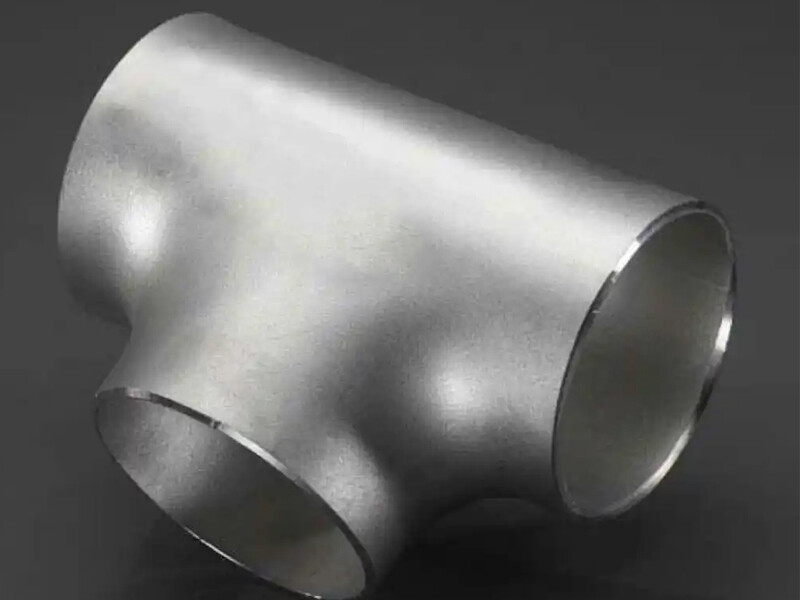

304 Stainless Steel Pipe Tees

Stainless steel tees are pipe fittings and pipe connectors. It is used at the branch pipe of the main pipeline. Stainless steel tee can be divided into equal diameter and reducing diameter, and the nozzle ends of equal diameter tee are the same size; The main pipe connecting pipe size of reducing tee is the same, while the connecting pipe size of branch pipe is smaller than that of main pipe.

Quick Quote

Request A Sample

PRODUCTS

FOUR REASONS TO CHOOSE US

AAA Level
Credit Steel Supplier

15+
Stock Warehouses

Support
Three-party Inspection

Large Order
Preferential Policies

Order Now：sales1@xcbmetals.com

Product Description 304 Stainless Steel Pipe Tees

Product Parameters

Product Name	304 Stainless Steel Pipe Tees
Type	Elbow, Tee, Reducer, Tube cap, Flange, etc.
Material	Stianless Steel
Grade	Stainless steel 304 / 304L / 310S / 316L / 316Ti / 316LN / 317L / 904L / 2205 / 2507 / 32760 / 253MA / 254SMo / XM-19 / S31803 / S32750 / S32205 / F50 / F60 / F55 / F60 / F61 / F65 etc
Application	Chemical, Pharmaceutical & Bio-Medical, Petrochemical & Refinery, Environmental, Food Processing, Aviation, Chemical Fertilizer, Sewage Disposal, Desalination, Waste Incineration etc.
Delivery Time	7-40 days
Packaging	Waterproof polybag, wooden box
Payment	T/T, L/C,D/A,D/P, Western Union,MoneyGram,According to customer requirements payments for offline orders.
Sample	Free

Chemical Composition

Grade	C	Si	Mn	p	S	Ni	Cr	Mo	N
254SMO	≤0 .02	≤0.8	≤1.0	≤0.04	≤ 0.03	17.5-18.5	19.5-20.5	6.0-6.5	0.18-0.20
904L	≤0 .02	≤1.0	≤2.0	≤0.045	≤0.035	23.0-28.0	19.0-23.0	4.0-5.0	≤0.1
654SMO	≤0 .02	≤0 .5	2.0-4.0	≤0.03	≤0.005	21.0-23.0	24.0-25.0	7.0-8.0	0.45-0.55
253MA	0.05-0.1	1.4-2.0	-	≤0.045	≤ 0.03	10.0-12.0	20.0-22.0	-	0.14-0.20
AL-6XN	≤0 .02	≤1.0	≤2.0	≤0.04	≤ 0.01	23.5-25.5	20.0-22.0	6.0-7.0	0.18-0.25
304	≤0 .08	≤1.0	≤2.0	≤0.045	≤ 0.03	8.0-10.5	18.0-20.0	-	-
304L	≤0.03	≤1.0	≤2.0	≤0.035	≤ 0.03	9.0-13.0	18.0-20.0	-	-
309S	≤0.08	≤1.0	≤2.0	≤0.045	≤ 0.03	12.0-15.0	22.0-24.0	-	-
310S	≤0.08	≤1.5	≤2.0	≤0.035	≤ 0.03	19.0-22.0	24.0-26.0	-	-
316	≤0.08	≤1.0	≤2.0	≤0.045	≤ 0.03	10.0-14.0	16.0-18.0	2.0-3.0	-
316L	≤0 .03	≤1.0	≤2.0	≤0.045	≤ 0.03	12.0-15.0	16.0 -18.0	2.0 -3.0	-
S32760	≤ 0 .03	≤1.0	≤1.0	≤0.035	≤ 0.015	6.0-8.0	24.0 -26.0	3.0-4.0	0.2-0.3
S32750	≤ 0 .03	≤0.8	≤1.2	≤0.035	≤0.02	6.0-8.0	24.0-26.0	2.0-3.0	0.24-0.32

Mechanical Properties

Grade	State	Hardness HV	Yield Strength	Tensile Strength	Elongation(%)
SUS304	ANN	<200	>205	>520	>40
	1/4H	200-250	>255	>550	>35
	1/2H	250-310	>470	>780	>6
	3/4H	310-370	>665	>930	>3
	H	370-430	>880	>1130	--
SUS301	ANN	<250	>205	>520	>40
	1/4H	250-310	>470	>780	>35
	1/2H	310-370	>510	>930	>10
	3/4H	370-430	>745	>1130	>5
	H	430-490	>1030	>1320	>3
	EH	490-550	>1275	>1570	--
	SH	>550	>1500	>1850	--
SUS201	ANN	<200	>205	>515	>40
	1/4H	200-250	>250	>550	>35
	1/2H	250-310	>470	>780	>6
	3/4H	310-370	>665	>930	>3
	H	370-430	>880	>1130	--
SUS430	ANN	<200	>205	>450	>22
	1/2H	200-250	>330	>505	>10
	H	250-310	>420	>750	>6
SUS443	ANN	<200	>305	>483	>31
SUS310S	≤200	<200	>205	>520	>40
SUS316L	≤200	<200	>310	>620	>40
