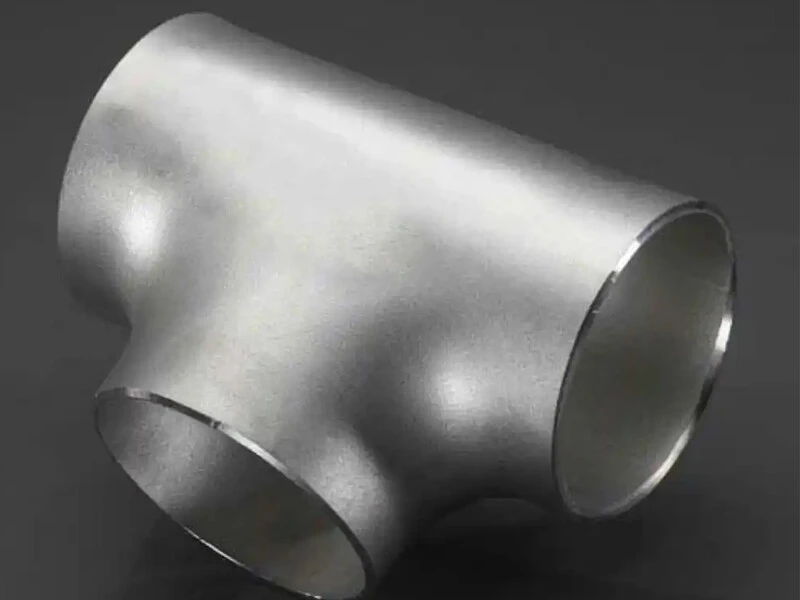

316 Stainless Steel Pipe Tees

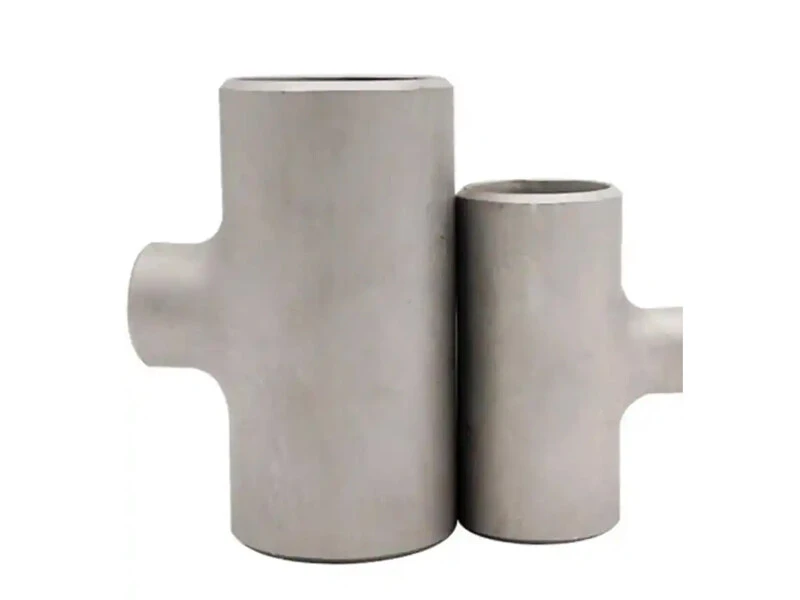

Stainless steel tees are fittings and pipe connectors. Used at the branching point of the main pipeline. Stainless steel tees can be divided into equal diameter and reduced diameter, and the connecting ends of equal diameter tees are of the same size; The main pipe of the reducing tee has the same connecting size, while the connecting size of the branch pipe is smaller than that of the main pipe.

Quick Quote

Request A Sample

PRODUCTS

FOUR REASONS TO CHOOSE US

AAA Level
Credit Steel Supplier

15+
Stock Warehouses

Support
Three-party Inspection

Large Order
Preferential Policies

Order Now：sales1@xcbmetals.com

Product Description 316 Stainless Steel Pipe Tees

Product Parameters

Product Name	316 Stainless Steel Pipe Tees
Type	Elbow, Tee, Reducer, Tube cap, Flange, etc.
Material	Stianless Steel
Grade	Stainless steel 304 / 304L / 310S / 316L / 316Ti / 316LN / 317L / 904L / 2205 / 2507 / 32760 / 253MA / 254SMo / XM-19 / S31803 / S32750 / S32205 / F50 / F60 / F55 / F60 / F61 / F65 etc
Application	Chemical, Pharmaceutical & Bio-Medical, Petrochemical & Refinery, Environmental, Food Processing, Aviation, Chemical Fertilizer, Sewage Disposal, Desalination, Waste Incineration etc.
Delivery Time	7-40 days
Packaging	Waterproof polybag, wooden box
Payment	T/T, L/C,D/A,D/P, Western Union,MoneyGram,According to customer requirements payments for offline orders.
Sample	Free

Chemical Composition

Grade	C	Si	Mn	p	S	Ni	Cr	Mo	N
254SMO	≤0 .02	≤0.8	≤1.0	≤0.04	≤ 0.03	17.5-18.5	19.5-20.5	6.0-6.5	0.18-0.20
904L	≤0 .02	≤1.0	≤2.0	≤0.045	≤0.035	23.0-28.0	19.0-23.0	4.0-5.0	≤0.1
654SMO	≤0 .02	≤0 .5	2.0-4.0	≤0.03	≤0.005	21.0-23.0	24.0-25.0	7.0-8.0	0.45-0.55
253MA	0.05-0.1	1.4-2.0	-	≤0.045	≤ 0.03	10.0-12.0	20.0-22.0	-	0.14-0.20
AL-6XN	≤0 .02	≤1.0	≤2.0	≤0.04	≤ 0.01	23.5-25.5	20.0-22.0	6.0-7.0	0.18-0.25
304	≤0 .08	≤1.0	≤2.0	≤0.045	≤ 0.03	8.0-10.5	18.0-20.0	-	-
304L	≤0.03	≤1.0	≤2.0	≤0.035	≤ 0.03	9.0-13.0	18.0-20.0	-	-
309S	≤0.08	≤1.0	≤2.0	≤0.045	≤ 0.03	12.0-15.0	22.0-24.0	-	-
310S	≤0.08	≤1.5	≤2.0	≤0.035	≤ 0.03	19.0-22.0	24.0-26.0	-	-
316	≤0.08	≤1.0	≤2.0	≤0.045	≤ 0.03	10.0-14.0	16.0-18.0	2.0-3.0	-
316L	≤0 .03	≤1.0	≤2.0	≤0.045	≤ 0.03	12.0-15.0	16.0 -18.0	2.0 -3.0	-
S32760	≤ 0 .03	≤1.0	≤1.0	≤0.035	≤ 0.015	6.0-8.0	24.0 -26.0	3.0-4.0	0.2-0.3
S32750	≤ 0 .03	≤0.8	≤1.2	≤0.035	≤0.02	6.0-8.0	24.0-26.0	2.0-3.0	0.24-0.32

Mechanical Properties

Grade	State	Hardness HV	Yield Strength	Tensile Strength	Elongation(%)
SUS304	ANN	<200	>205	>520	>40
	1/4H	200-250	>255	>550	>35
	1/2H	250-310	>470	>780	>6
	3/4H	310-370	>665	>930	>3
	H	370-430	>880	>1130	--
SUS301	ANN	<250	>205	>520	>40
	1/4H	250-310	>470	>780	>35
	1/2H	310-370	>510	>930	>10
	3/4H	370-430	>745	>1130	>5
	H	430-490	>1030	>1320	>3
	EH	490-550	>1275	>1570	--
	SH	>550	>1500	>1850	--
SUS201	ANN	<200	>205	>515	>40
	1/4H	200-250	>250	>550	>35
	1/2H	250-310	>470	>780	>6
	3/4H	310-370	>665	>930	>3
	H	370-430	>880	>1130	--
SUS430	ANN	<200	>205	>450	>22
	1/2H	200-250	>330	>505	>10
	H	250-310	>420	>750	>6
SUS443	ANN	<200	>305	>483	>31
SUS310S	≤200	<200	>205	>520	>40
SUS316L	≤200	<200	>310	>620	>40
